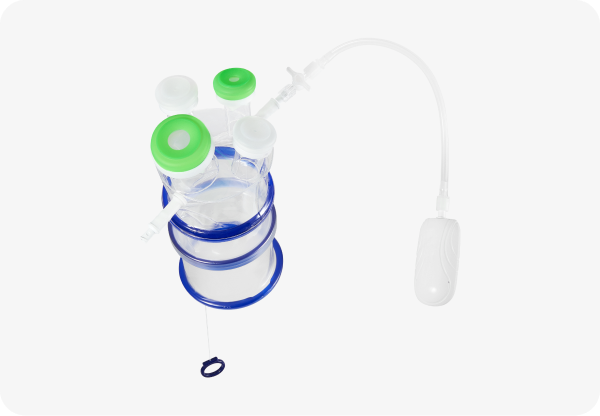

the ONEPORT

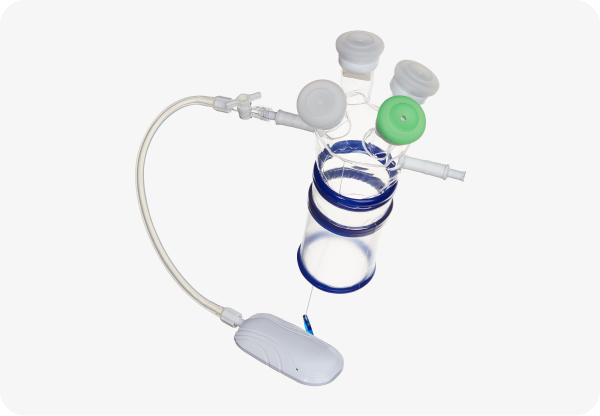

the ONEPORT is a single-use, single-incision laparoscopic access system.
A transparent wound protector–retractor and a multi-channel top cap are designed to maintain a stable seal and clear exposure while supporting the simultaneous use of instruments.
Available as an all-in-one unit or a separable set.

List Contact

OVERVIEW
KEY FEATURES
SELECT TYPE

OVERVIEW

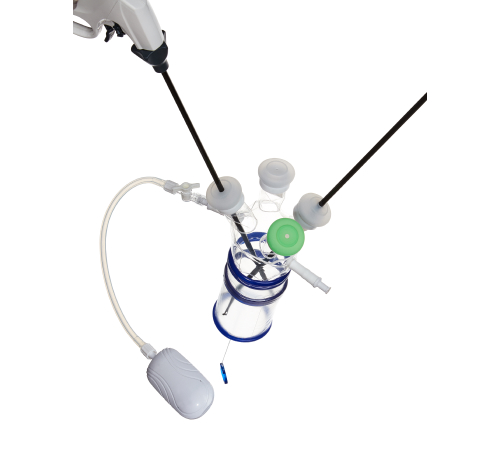

the ONEPORT expands single-incision laparoscopic capability with design options that support a wide range of minimally invasive procedures, including robotic-assisted surgery.
Its enhanced port configurations allow smooth instrument coordination and consistent intraoperative visibility, helping surgeons maintain efficiency in demanding surgical environments.

KEY FEATURES

ProtectiveSleeve System	Transparent sleeve with sealing rings for wound protection and clear visualization.
Stable Seal	Maintains pneumoperitoneum for safe, efficient surgery.
Multi-Instrument Compatibility	Supports laparoscopic and robotic instruments via multi-channel cap.
Quick Setup	Easy placement and roll-in/roll-out removal.
Versatile Models	All-in-one or separable; compatible with robotic and conventional surgery.
Patient-Friendly	Single-incision approach may reduce scarring and pain for faster recovery.
Flexible Material	Tear-resistant sleeve ensures durability and smooth instrument movement.

SELECT TYPE

Integrated Type Modular Type Robotic-Compatible

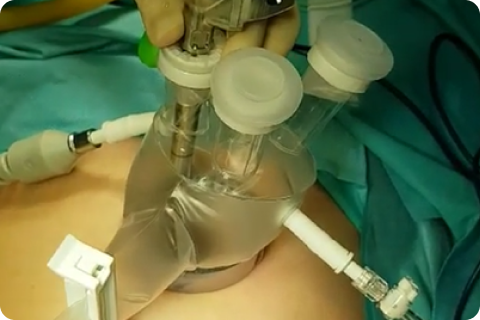

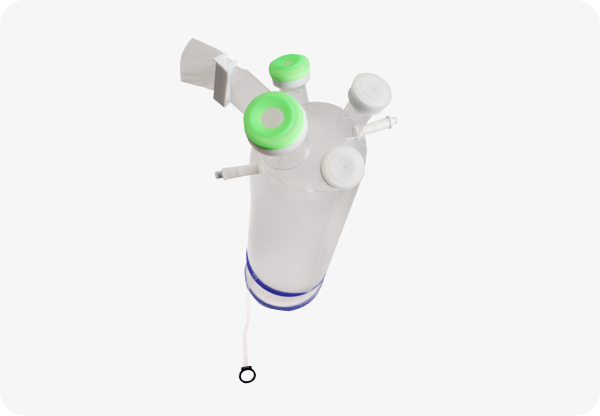

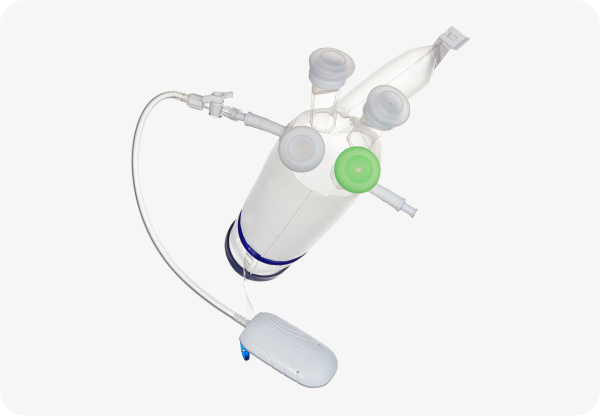

One-piece design for stable access and smooth multi-instrument use.

Highlight: The Integrated Type features a simple, single-unit design that supports quick setup and stable sealing for multi-instrument laparoscopic use. It is offered in various diameters and with optional smoke-filter models to fit different workflow and safety needs.

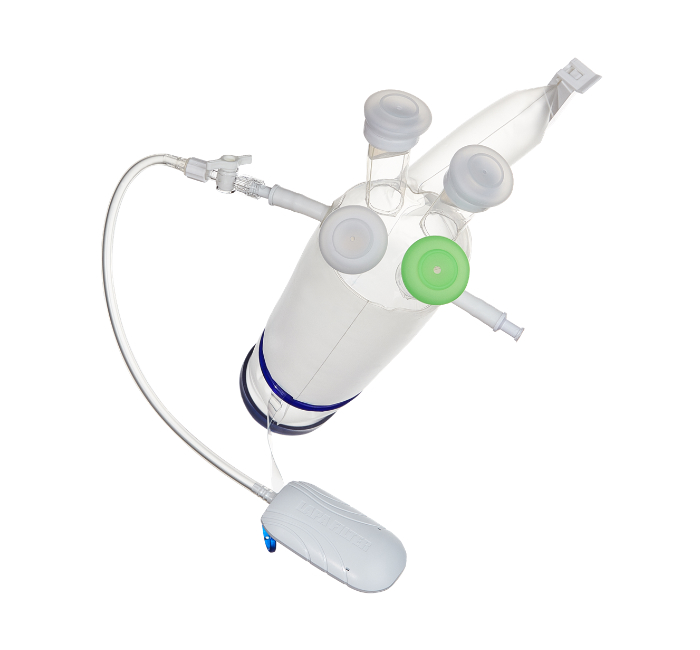

Functionality: Quick, single-unit setup; Consistent sealing with four instrument channels; Optional smoke-filter model for improved OR safety; Available in multiple diameters

Body Type	Ports	Innering (Ø)	Instrument Port Size	Filter option	Indication / Notes
one-body	4	60 mm	Three (3) ports: 5~12 mm / One (1) camera port: 10~12 mm (Green Seal)	With / Without filter	-
update	update	update	update	update	update

Body Type	one-body
Ports	4
Innering (Ø)	60 mm
Instrument Port Size	Three (3) ports: 5~12 mm / One (1) camera port: 10~12 mm (Green Seal)
Filter option	With / Without filter
Indication / Notes	-
Body Type	update
Ports	update
Innering (Ø)	update
Instrument Port Size	update
Filter option	update
Indication / Notes	update

Note: Integrated models share identical specs; model numbers differ by filter option only.

Detail

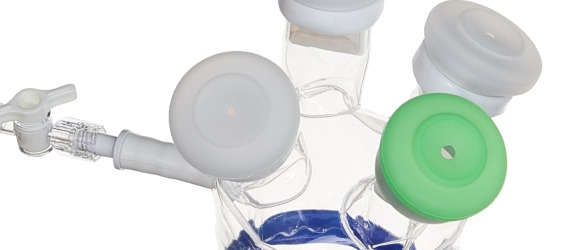

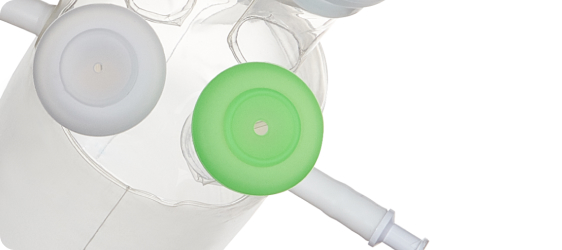

White Seal

Instrument Cap

Maintains airtight sealing for standard laparoscopic instruments.

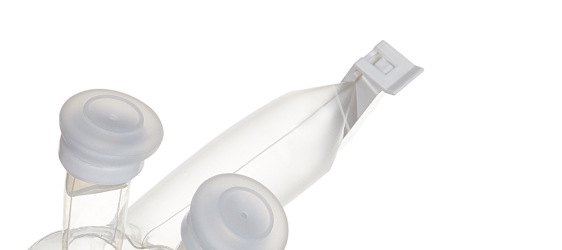

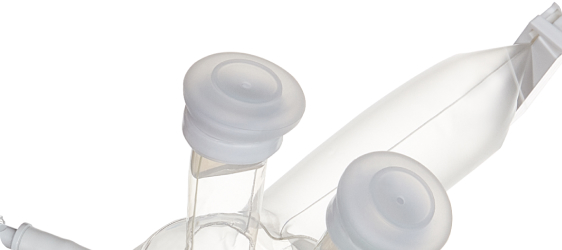

Tissue Retrieval Pouch

Enables controlled removal of resected tissue through the incision.

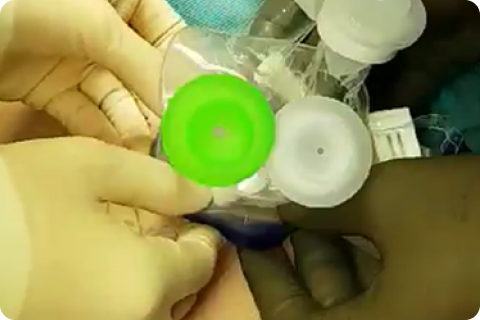

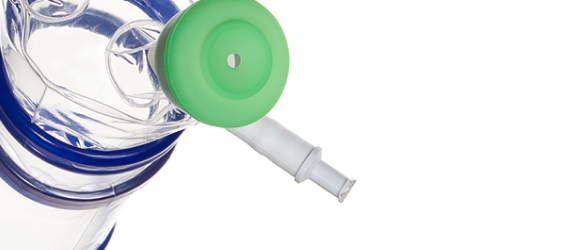

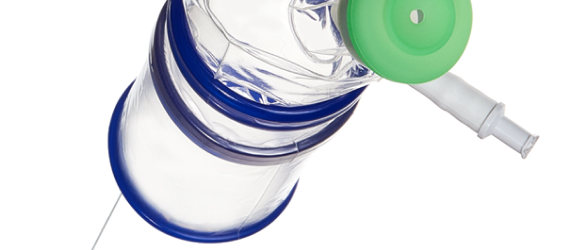

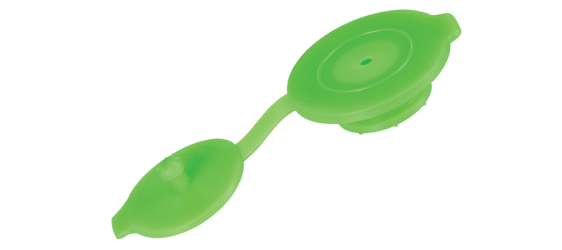

Green Seal

Endoscope Cap (camera)

Dedicated sealed cap for endoscope (camera), maintaining pneumoperitoneum and stable visualization.

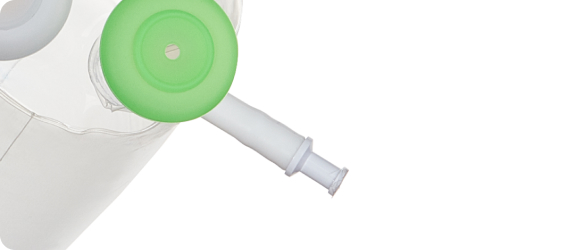

Gas Port

Provides both CO₂ insufflation and smoke evacuation through a shared channel. The side positioning reduces instrument collision and helps maintain stable pneumoperitoneum.

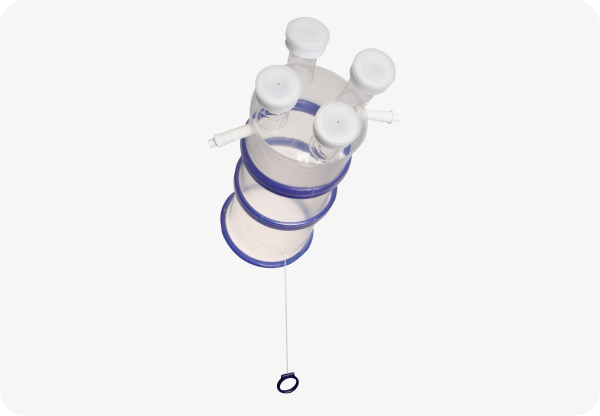

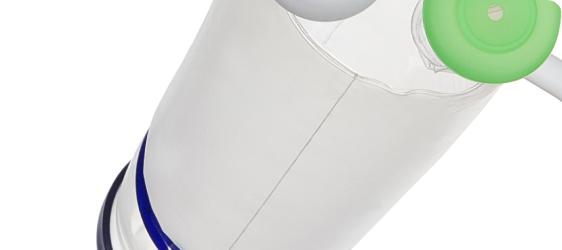

Integrated Sleeve

Transparent one-piece sleeve anchored by upper and lower rings, providing atraumatic retraction and wound protection.

Upper Seal Ring

Creates a secure seal at the incision site and supports the top cap assembly.

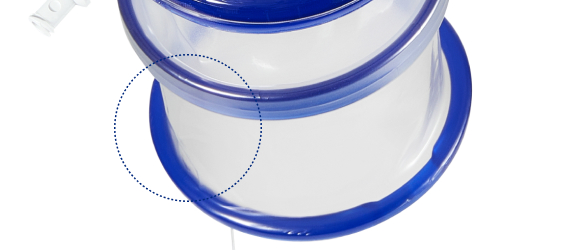

Anchoring Ring

Secures the port and minimizes slippage during instrument manipulation.

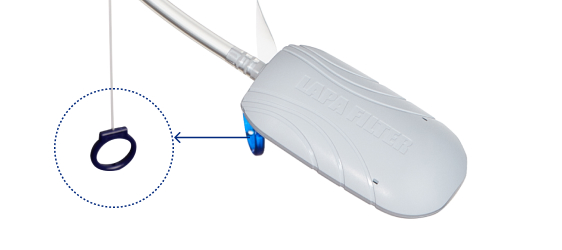

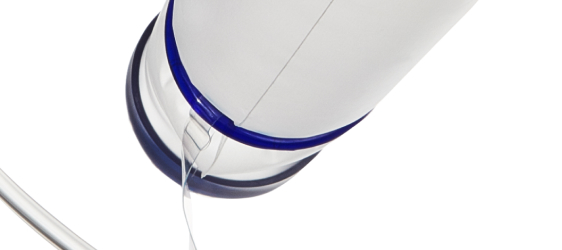

Retrieval Loop

Tethered loop for controlled port removal at the end of the procedure.

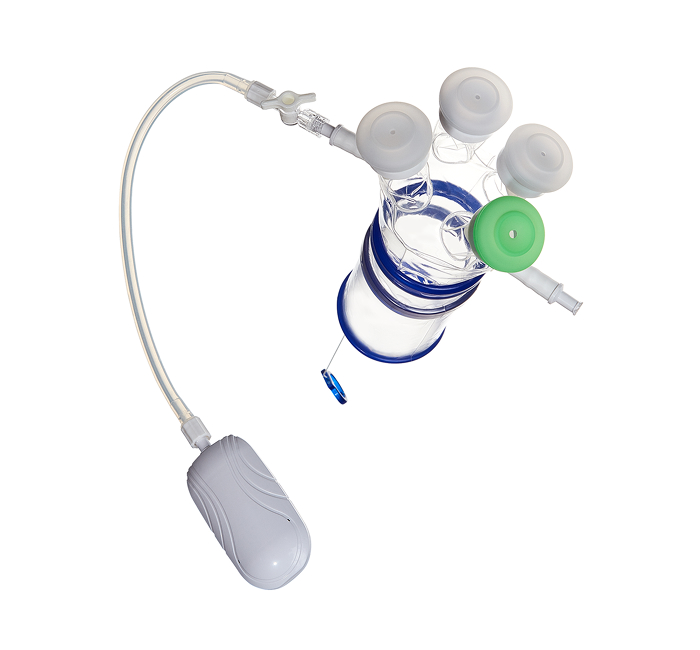

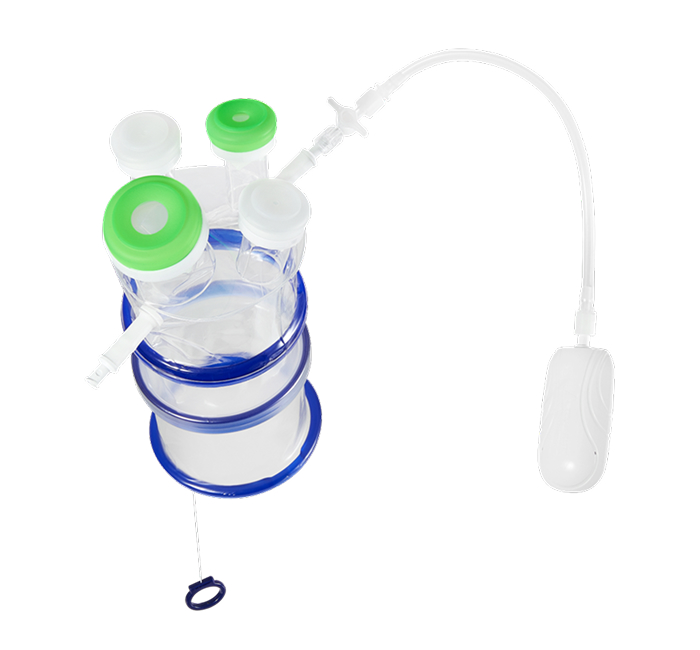

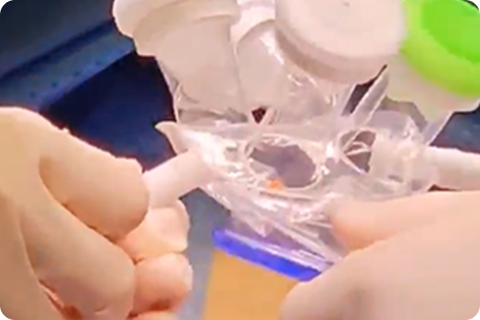

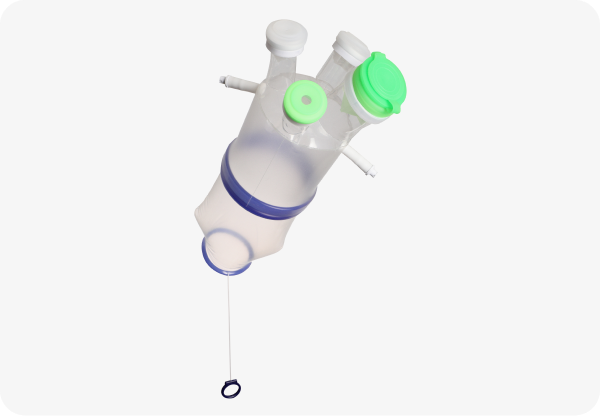

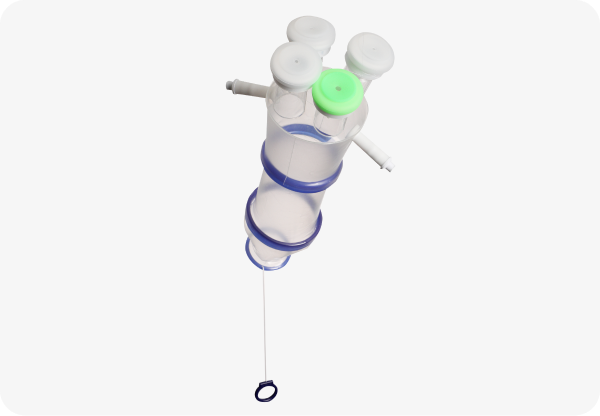

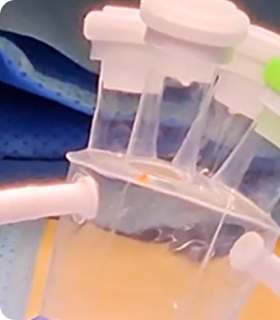

Separable body design with enhanced sealing for smooth multi-instrument handling.

Highlight: The Modular Type uses a separable body design that allows flexible handling and easy component replacement while maintaining airtight sealing during advanced laparoscopic procedures.

Functionality: Separable, modular body structure; Stable sealing with smooth multi-instrument use; Efficient workflow with flexible component handling

Body Type	Ports	Innering (Ø)	Instrument Port Size	Filter option	Indication / Notes
two-body	4	60 mm	Three (3) ports: 5~12 mm / One (1) camera port: 10–12 mm (Green Seal)	With / Without filter	Standard use
two-body	4	40mm	Three (3) ports: 5~12 mm / One (1) camera port: 10–12 mm (Green Seal)	With / Without filter	Pediatric / Hernia (under 10 yrs)
two-body	4	92mm	Four (4) ports: 5~12 mm (no Green Seal)	With / Without filter	Enlarged diameter

Body Type	two-body
Ports	4
Innering (Ø)	60 mm
Instrument Port Size	Three (3) ports: 5~12 mm / One (1) camera port: 10–12 mm (Green Seal)
Filter option	With / Without filter
Indication / Notes	Standard use
Body Type	two-body
Ports	4
Innering (Ø)	40mm
Instrument Port Size	Three (3) ports: 5~12 mm / One (1) camera port: 10–12 mm (Green Seal)
Filter option	With / Without filter
Indication / Notes	Pediatric / Hernia (under 10 yrs)
Body Type	two-body
Ports	4
Innering (Ø)	92mm
Instrument Port Size	Four (4) ports: 5~12 mm (no Green Seal)
Filter option	With / Without filter
Indication / Notes	Enlarged diameter

Note: Integrated models share identical specs; model numbers differ by filter option only.

Detail

White Seal

Instrument Cap

Maintains airtight sealing for standard laparoscopic instruments.

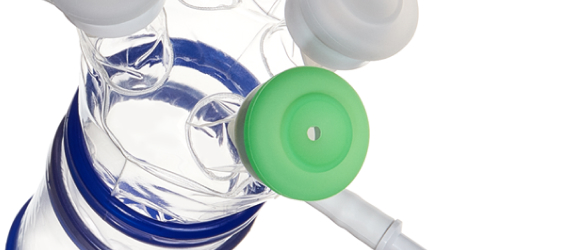

Green Seal

Endoscope Cap (camera)

Dedicated sealed cap for endoscope (camera), maintaining pneumoperitoneum and stable visualization.

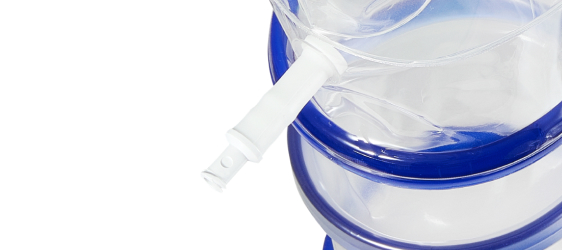

Gas Port

Provides both CO₂ insufflation and smoke evacuation through a shared channel. The side positioning reduces instrument collision and helps maintain stable pneumoperitoneum.

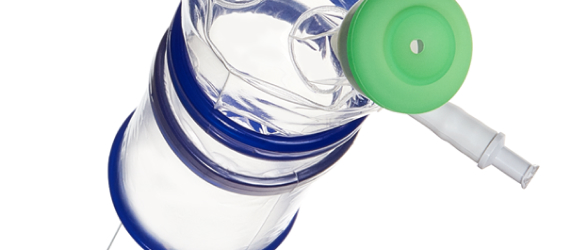

Upper Seal Ring

Creates a secure seal at the incision site and supports the top cap assembly.

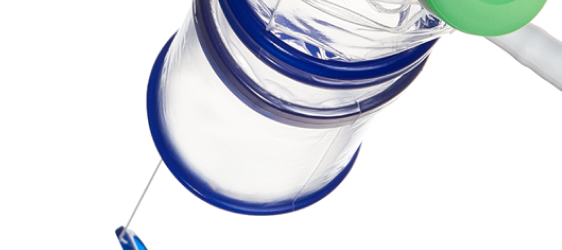

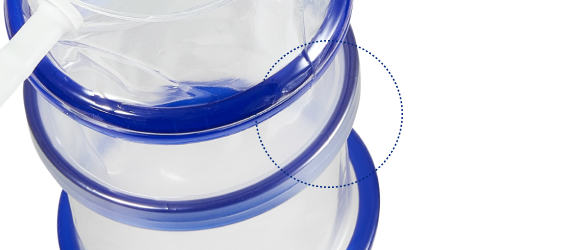

Control Ring

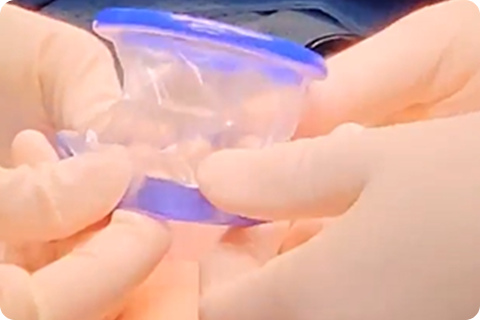

Adjusts sleeve tension and length; roll in/out for quick placement and removal.

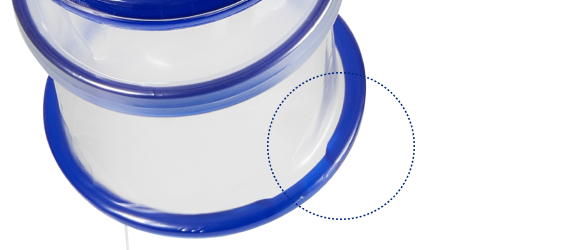

Anchoring Ring

Secures the port and minimizes slippage during instrument manipulation.

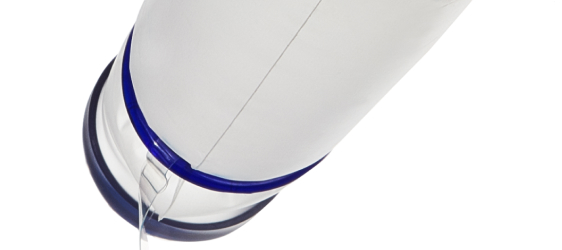

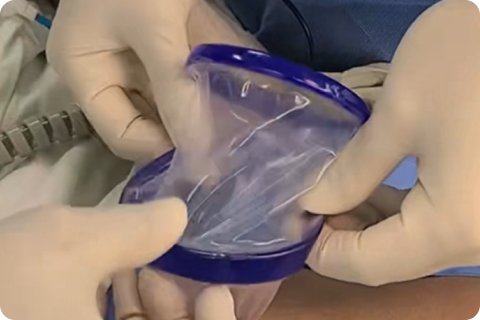

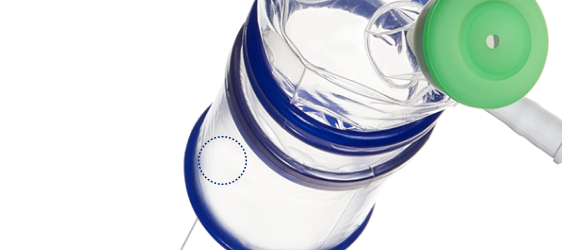

Wound Protector-Retractor

Transparent sleeve with dual rings provides 360° atraumatic retraction and wound protection. Made of flexible, tear-resistant polyurethane, it allows smooth instrument movement and clear visualization of wound margins.

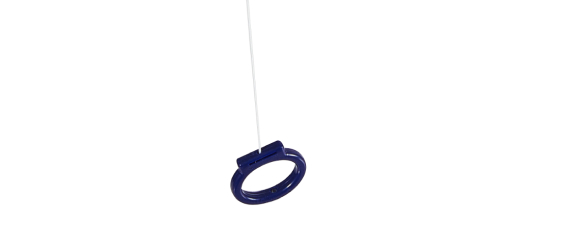

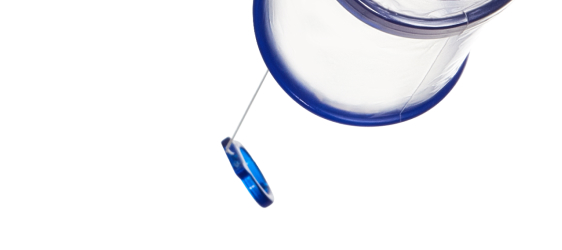

Retrieval Loop

Tethered loop for controlled port removal at the end of the procedure.

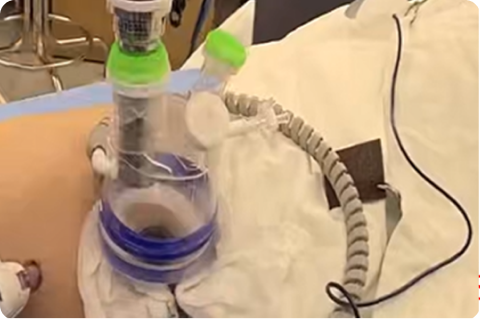

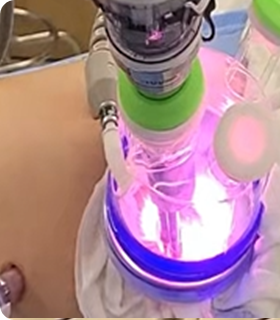

Optimized access for robotic-assisted procedures with large robotic-arm channel plus additional ports.

Highlight: The Robotic-Compatible Type provides a dedicated 25 mm robotic-arm channel combined with additional instrument ports to maintain stable exposure and sealing during robotic-assisted procedures.

Functionality: 25 mm robotic-arm access; Three additional ports for flexible instrument use; Consistent sealing under robotic-assisted manipulation; Convertible cap allows transition to conventional laparoscopy

Body Type	Ports	Innering (Ø)	Instrument Port Size	Filter option
two-body (SP)	4	92 mm	Two (2) ports: 5–12 mm / One (1) port: 12–15 mm (Green Seal) / One (1) robotic arm channel: 25 mm	With / Without filter
two-body (SP)	4	60mm	Two (2) ports: 5–12 mm / One (1) port: 12–15 mm (Green Seal) / One (1) robotic arm channel: 25 mm	With / Without filter
one-body (SP)	4	92 mm	Two (2) ports: 5–12 mm / One (1) port: 12–15 mm (Green Seal) / One (1) robotic arm channel: 25 mm	With / Without filter

Body Type	two-body (SP)
Ports	4
Innering (Ø)	92 mm
Instrument Port Size	Two (2) ports: 5–12 mm / One (1) port: 12–15 mm (Green Seal) / One (1) robotic arm channel: 25 mm
Filter option	With / Without filter
Body Type	two-body (SP)
Ports	4
Innering (Ø)	60mm
Instrument Port Size	Two (2) ports: 5–12 mm / One (1) port: 12–15 mm (Green Seal) / One (1) robotic arm channel: 25 mm
Filter option	With / Without filter
Body Type	one-body (SP)
Ports	4
Innering (Ø)	92 mm
Instrument Port Size	Two (2) ports: 5–12 mm / One (1) port: 12–15 mm (Green Seal) / One (1) robotic arm channel: 25 mm
Filter option	With / Without filter

Note: Integrated models share identical specs; model numbers differ by filter option only.

Detail

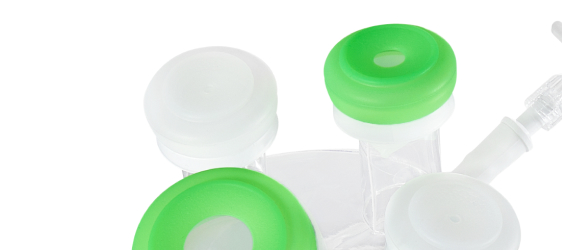

White Seal

Airtight seal for 5–12 mm laparoscopic instruments.

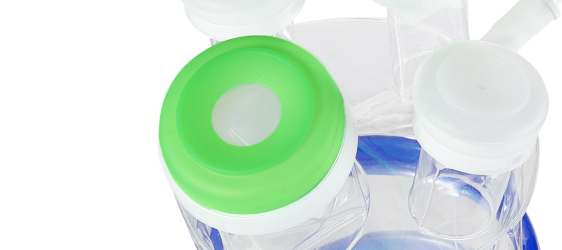

Green Seal

Additional Instrument Cap

Enlarged sealing port (12–15 mm) for staplers and advanced energy devices.

Robotic Arm Port

Dedicated large-diameter access channel for robotic instruments.

5 mm Converter

Enables hybrid use by adapting the robotic arm port for conventional instruments.

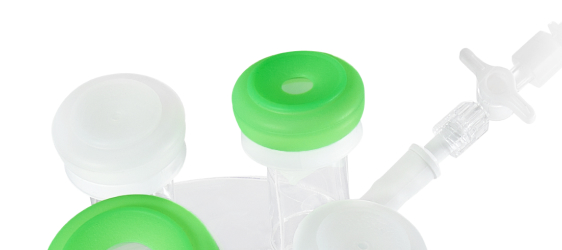

Gas Port

Provides both CO₂ insufflation and smoke evacuation through a shared channel. The side positioning reduces instrument collision and helps maintain stable pneumoperitoneum.

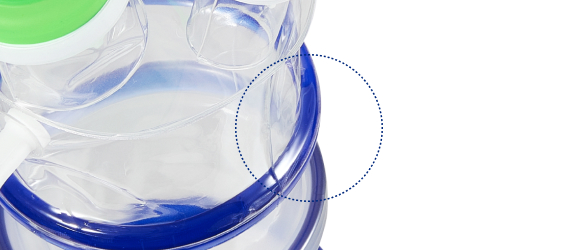

Upper Seal Ring
