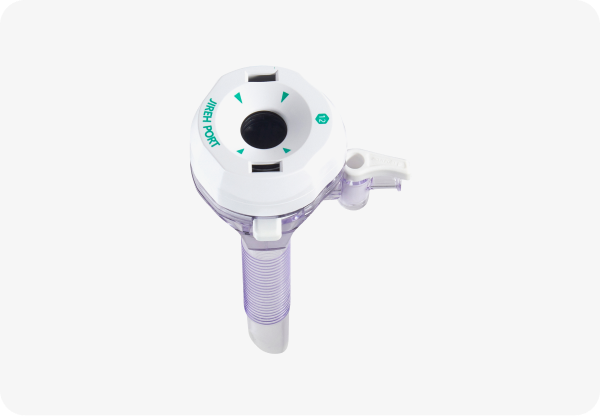

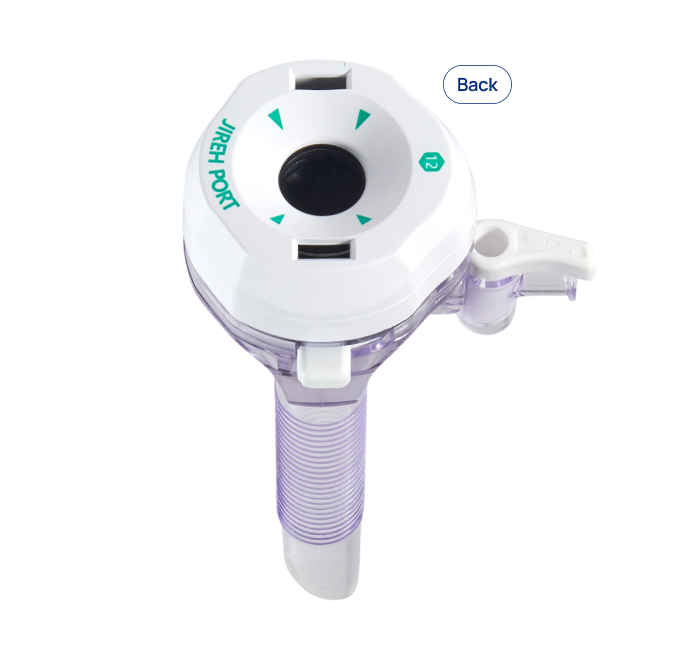

Single-Use Multi-Port Trocar System for Laparoscopic Surgery
The JIREH PORT is a high-performance trocar system designed to provide secure and versatile access for laparoscopic instruments.
With multiple size options and reliable sealing, it ensures safe, smooth, and efficient multi-port minimally invasive surgery.
| Single-Use Design | Ensures sterility and eliminates cross-contamination risk |
|---|---|

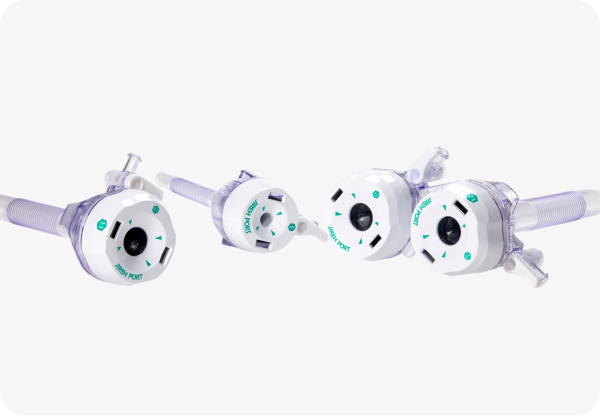

| Versatile Sizes | Available in 5 mm, 11 mm, and 12 mm options |
| Secure Fixation | Strong anchoring minimizes slippage during surgery |
| Smooth Instrument Exchange | Low-friction cannula for easy handling |
| Leak-Proof Seal | Maintains stable insufflation throughout procedures |
| Surgeon-Friendly | Lightweight, durable, and ergonomically designed |
One-piece integrated body for streamlined, routine laparoscopic workflows.
| Model | Size (Ø × Length) | Type | Filter option | Packaging (EA/Box × EA/Carton) |
|---|---|---|---|---|
| J5 / JR5 | Ø5 × 100 mm | Sharp | With / Without filter | 6 × 60 |
| J5T / JR5T | Ø5 × 100 mm | Sharp | With / Without filter | 6 × 60 |
| J57B / JR57B | Ø5 × 75 mm | Blunt | With / Without filter | 6 × 60 |
| Model | J5 / JR5 |
|---|---|
| Size (Ø × Length) | Ø5 × 100 mm |
| Type | Sharp |
| Filter option | With / Without filter |
| Packaging (EA/Box × EA/Carton) | 6 × 60 |
| Model | J5T / JR5T |
| Size (Ø × Length) | Ø5 × 100 mm |
| Type | Sharp |
| Filter option | With / Without filter |
| Packaging (EA/Box × EA/Carton) | 6 × 60 |
| Model | J57B / JR57B |
| Size (Ø × Length) | Ø5 × 75 mm |
| Type | Blunt |
| Filter option | With / Without filter |
| Packaging (EA/Box × EA/Carton) | 6 × 60 |
Note: Integrated models share identical specs; model numbers differ by filter option only.

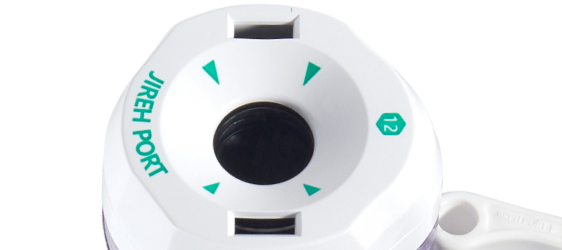

Links securely with the obturator to ensure safe and stable abdominal wall entry.

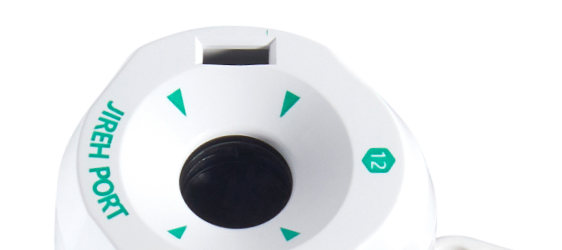

Provides smooth and easy instrument access, minimizing friction during insertion and withdrawal.

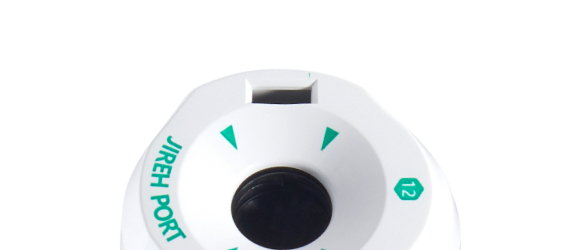

Maintains stable pneumoperitoneum and accommodates a wide range of 5–12 mm laparoscopic instruments.

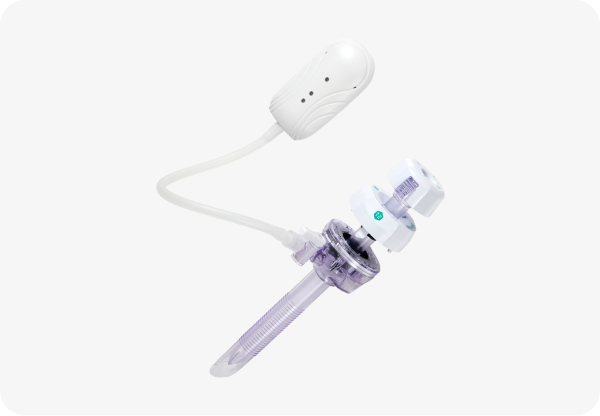

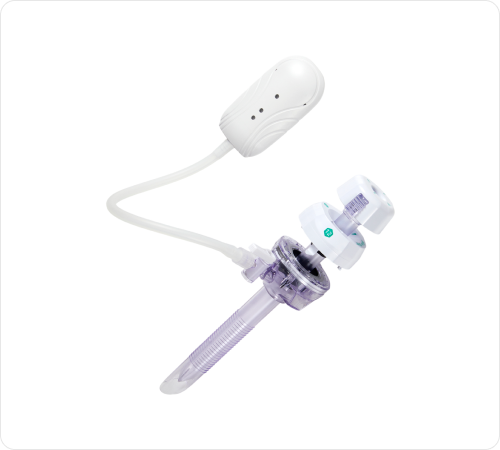

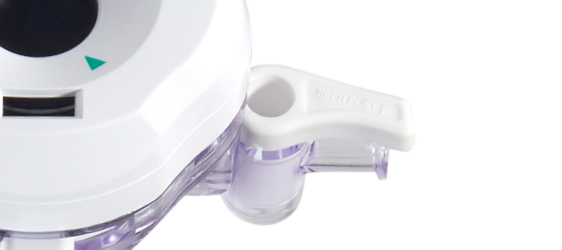

Enables precise CO₂ gas control and offers a reliable open–close mechanism for smooth operation.

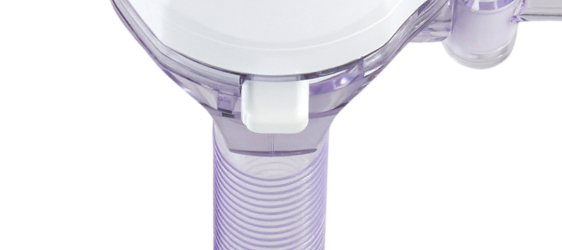

Unlocks the housing for quick specimen removal and supports simple, user-friendly handling after surgery.

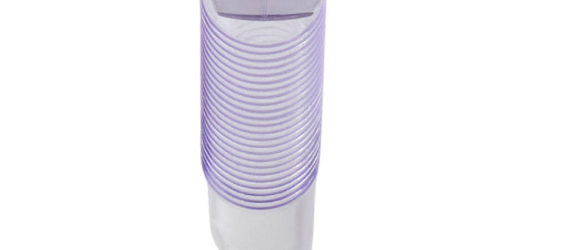

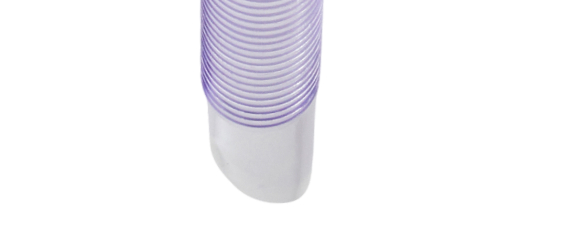

Provides clear visualization of the abdominal wall and ensures strong fixation with minimal slippage.
Reduces the risk of tissue and vascular injury, requires less insertion force, and eliminates blind entry.

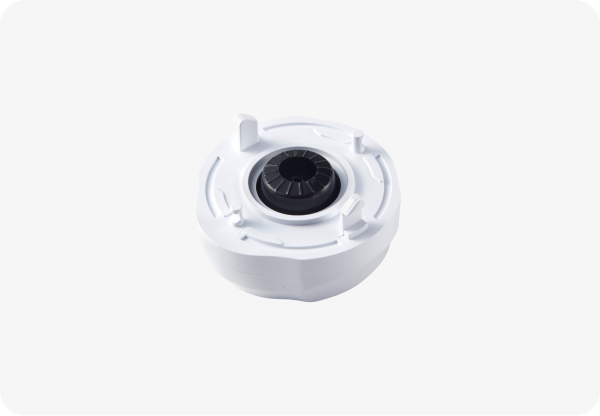

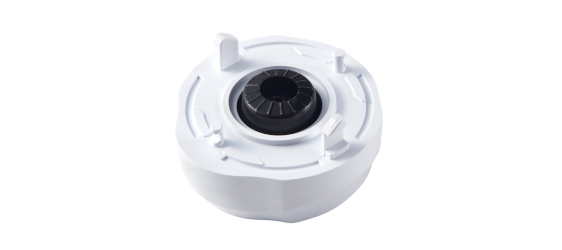

Prevents air leakage and keeps the internal seal surface clean for clear visualization throughout the procedure.
